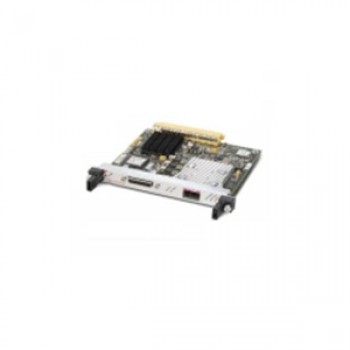

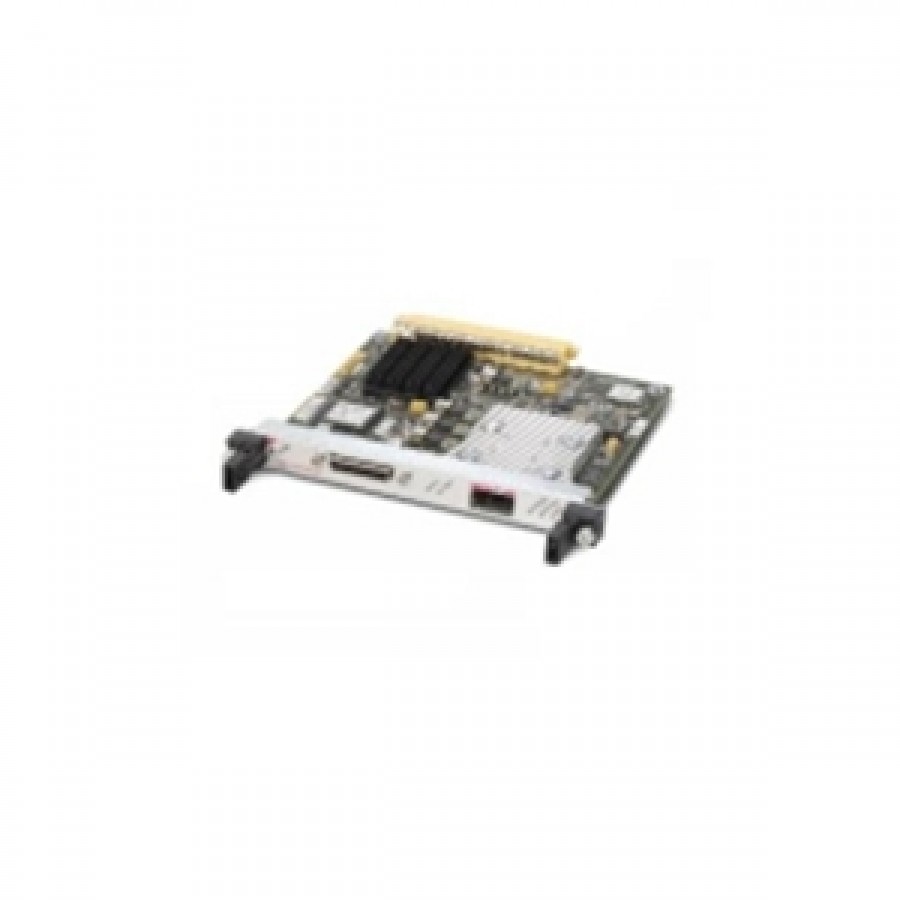

Cisco SPA-OC192POS-XFP

The 1-Port OC-192c/STM-64 POS/RPR XFP SPA uses a single-mode, 9.95 Gbps, OC-192 optical fiber (SONET STS-192c or SDH STM-64) optical transceiver module for SONET and SDH connection to the network. The 1-Port OC-192c/STM-64 POS/RPR XFP SPA is a single-height SPA that is installed in a SIP subslot. The 1-Port OC-192c/STM-64 POS/RPR XFP SPA provides SONET and SDH network connectivity with a bandwidth of 9.95 Gbps. The 1-Port OC-192c/STM-64 POS/RPR XFP SPA uses a 10-Gbps small form-factor pluggable (XFP) optic receptacle for each port allowing connection to single-mode optical fiber. Packet data is transported with a user-configured encapsulation (such as Point-to-Point Protocol PPP) and is mapped into the STS-192c/STM-64 frame.

Cisco SPA-OC192- POS-XFP General Information

Manufacturer: Cisco Systems, Inc

Brand Name: Cisco

Product Name: 1-Port OC-192c/STM-64c POS/RPR Shared Port Adapter

Product Type: Shared Port Adapter

Cisco SPA-OC192-POS-XFP Interfaces/Ports

Interfaces/Ports: Not Applicable

Interfaces/Ports Details: Not Applicable

Cisco SPA-OC192-POS-XFP I/O Expansions

Expansion Slots: 1 x XFP

Cisco SPA-OC192-POS-XFP Management & amp; Protocols

Management:

SNMP

Cisco SPA-OC192-POS-XFP Physical Characteristics

Dimensions: 0.8 Height

Weight: 0.75 lb

Compatibility:

Cisco 7600 Series Router

Cisco 12000 Series Router

Cisco XR 12000 Series Router

Cisco CRS-1 Carrier Routing System

Cisco 7600 Series Router

Cisco 12000 Series Router

Cisco XR 12000 Series Router

Cisco CRS-1 Carrier Routing System
