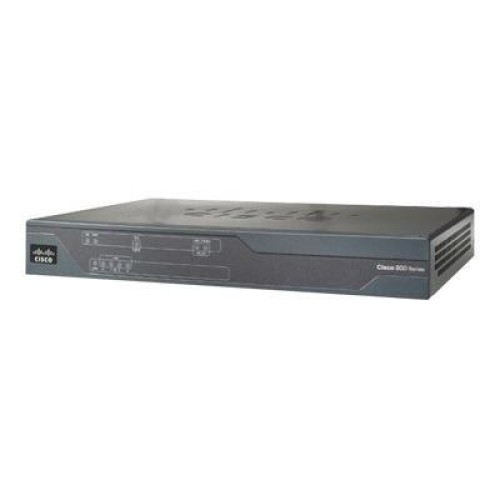

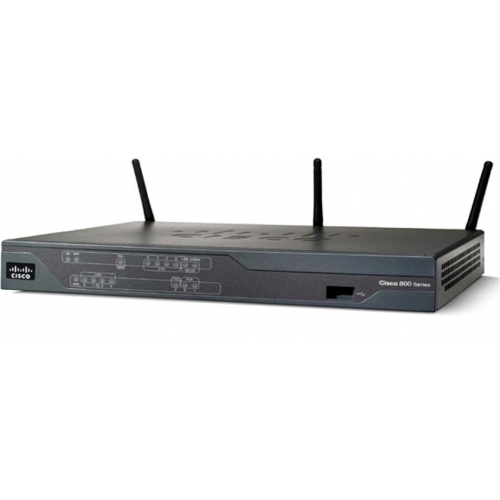

Маршрутизатор CISCO 887V-K9

Маршрутизатор CISCO 887V-K9

CISCO 887V-K9 маршрутизатор поєднує в собі доступ в Інтернет, безопасност, передачу голосу і бездротових послуг за допомогою одного безпечного пристрою, простого у використанні і управлінні. CISCO 887V-K9 маршрутізаторподходіт для малого бізнесу, невеликих філій і віддалених працівників. Cisco поставляє 887v функцій, включаючи брандмауер, фільтрацію контента, VPN і бездротових локальних мереж (WLAN) на швидкостях широкосмугового доступу в невеликих офісах. Простота розгортання і централізованого управління дозволяють допомогти підприємствам або сервіс-провайдерам розгорнути 887v Cisco в невеликих філіях або малих підприємствах.

Технічні характеристики:

Manufacturer	Cisco
Manufacturer Part #	CISCO887V-K9
Cost Central Item #	10976257
Product Description	Cisco 887V Integrated Services Router - Router - ISDN/DSL - 4-port switch - desktop
Device Type	Router - ISDN/DSL modem combo - 4-port switch (integrated)
Enclosure Type	Desktop
Digital Signaling Protocol	VDSL2
Data Link Protocol	Ethernet, Fast Ethernet
Capacity	IPSec VPN tunnels: 20
Network/Transport Protocol	L2TP, IPSec, PPPoE, PPPoA
Routing Protocol	RIP-1, RIP-2, HSRP, VRRP, GRE
Remote Management Protocol	Telnet, SNMP 3, HTTP, HTTPS, SSH
Features	Firewall protection, DHCP support, NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI), MAC address filtering, Broadcast Storm Control, Low-latency queuing (LLQ) , Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DNS proxy
Compliant Standards	IEEE 802.1D, IEEE 802.1Q
Power	AC 120/230 V (50/60 Hz )
Approximate Dimensions (WxDxH)	12.8 in x 9.8 in x 1.7 in

General

Device Type	Router - 4-port switch (integrated)
Enclosure Type	Desktop
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Capacity	I PSec VPN tunnels: 20
Network/Transport Protocol	L2TP, IPSec, PPPoE, PPPoA
Routing Protocol	RIP-1, RIP-2, HSRP, VRRP, GRE
Remote Management Protocol	Telnet, SNMP 3, HTTP, HTTPS, SSH
Encryption Algorithm	DES, Triple DES, SSL, PKI, 128-bit AES, 192-bit AES, 256 -bit AES
Authentication Method	RADIUS, TACACS +
Features	Firewall protection, DHCP support, NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI), MAC address filtering, Broadcast Storm Control, Low-latency queuing (LLQ), Class- Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, DNS proxy
Compliant Standards	IEEE 802.1D, IEEE 802.1Q
RAM	256 MB (installed)/768 MB (max) - DDR2 SDRAM - SO DIMM 200-pin
Flash Memory	128 MB
Status Indicators	Port status, power

Communications

Type	ISDN/DSL modem combo
Digital Signaling Protocol	VDSL2

Expansion/Connectivity

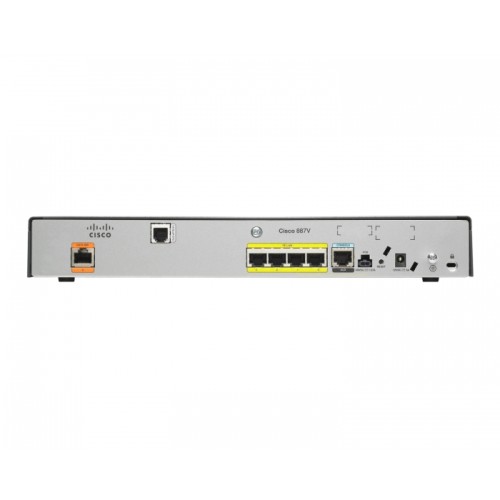

Interfaces	LAN: 4 x 10Base-T/100Base-TX - RJ-45 Management: 1 x RJ-45 WAN: 1 x VDSL2 USB: 1 x 4 pin USB Type A WAN: 1 x BRI ST
Expansion Slots Total (Free)	1 (1) x ExpressCard 1 (1) x memory - SO DIMM 200-pin

Power

Power Device	Power adapter - external - 60 Watt
Voltage Required	AC 120/230 V (50/60 Hz)

Miscellaneous

Approximate Width	12.8 in
Approximate Depth	9.8 in
Approximate Height	1.7 in
Compliant Standards	VCCI-II, EN55024, CSA 22.2 No. 60950, EN55022 Class B, AS/NZ 3548 Class B, AS/NZS 60950-1, CS-03, EN 60555-2, UL 60950-1, IEC 60950-1

Software/System Requirements

OS Provided

Cisco IOS Advanced Security

Environmental Parameters

Min Operating Temperature	32 ° F
Max Operating Temperature	104 ° F
Humidity Range Operating	10 - 85%
