• Cisco 7600-SIP-400

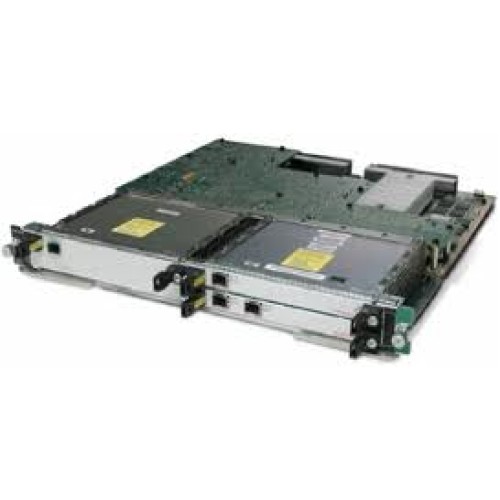

Cisco 7600-SIP-400

  • Модель: 7600-SIP-400
  • Наявність: В наявності

  • Уточнюйте


Description Specification
Compatibility Cisco Route Switch Processor 720 3C/3CXL, Cisco Supervisor Engine 720-3B/3BXL, and Cisco Supervisor Engine 32 (Sup-32) systems
Minimum software compatibility Cisco IOS® & nbsp ; Software Release 12.2 (18) SXE, or later releases for Supervisor Engine 720-3B/3BXL and Supervisor Engine 32 systems in native mode Cisco IOS Software; also, 12.2 (33) SRB or later releases for RSP720-GE-3CXL and RSP720-GE-3C systems
Protocols • TCP

• User Datagram Protocol (UDP)

• IPv4 Unicast and Multicast

• IPv6 Unicast and Multicast

• Multiprotocol Label Switching ( MPLS)

• SAToP and CESoPSN

Encapsulation • Frame Relay

• Point-to-Point Protocol (PPP)

• High-Level Data Link Control (HDLC)

• ATM permanent virtual circuit-constant bit rate (PVC-CBR) , variable bit rate real-time (VBR-rt), VBR non-real-time (VBR-nrt), and unspecified bit rate (UBR)

• ATM switched virtual circuit (SVC) -CBR, VBR-rt, VBR-nrt, UBR, UBR +

• TDM over MPLS, ATM over MPLS, and ATM over GRE

• L2TPv3

Cards, ports, and slots Four SPA bays per Cisco 7600 SIP-400
Features QoS, ACLs, and Low-Speed Aggregation Features

QoS

• Modular QoS CLI (MQC)

• Classification based on:

• IP Precedence (IPv6 and IPv4)

• Diffserv code point (DSCP) (IPv6 and IPv4)

• MPLS experimental values (MPLS EXP)

• Extended ACL

• ATM CLP

• Frame Relay DE

• Class of Service (CoS)

• VLAN

Congestion Avoidance

• Weighted Random Early Detection (WRED) based on IP Precedence, DSCP, MPLS EXP, ECN (mark IP TOS field for POS traffic)

Queuing

• Congestion management

• Per-virtual circuit queuing

• Ingress and egress Low-Latency Queuing (LLQ)

• Egress Class-Based Weighted Fair Queuing (CBWFQ)

Traffic Classification, Shaping, and Bandwidth Policing

• Marking

• Policing

• Distributed traffic shaping (DTS)

• Hierarchical service policies

Security

• Standard and extended ACLs

Layer 2 and Layer 3 VPNs

• Ethernet over MPLS (EoMPLS)

• ATM over MPLS (ATM over MPLS)

• ATM Adaptation Layer 5 (AAL5) virtual circuit mode, single and packed cell relay virtual circuit mode

• Frame Relay over MPLS (FRoMPLS)

• Layer 3 MPLS/VPN over GRE

• ATM over GRE, Ethernet over GRE

• TDM over MPLS

High availability

• IPv4 Nonstop Forwarding (NSF)

• IPv4 Stateful Switchover (SSO)

• Automatic Protection Switching (APS) with ATM, POS SPAs

• OIR for both SIP and SPA

Memory 1 GB default Double Data Rate (DDR) synchronous dynamic RAM (SDRAM) per Cisco 7600 SIP-400
Supported SPAs Ethernet

• 2-port 1 GE SPA (V1 and V2)

• 5 port 1 GE SPA (V2 only)

• 1-port 10GbE SPA LAN PHY (V2 only)

ATM

• Cisco 2-Port OC-3c/STM-1c ATM SPA

• Cisco 4-Port OC -3c/STM-1c ATM SPA

• Cisco 1-Port OC-12c/STM-4c ATM SPA

• Cisco 1-port OC48/STM16 ATM SPA

POS

• Cisco 2-Port OC-3c/STM-1c POS SPA

• Cisco 4-Port OC-3c/STM-1c POS SPA

• Cisco 1-Port OC-12c/STM-4c POS SPA

• Cisco 1-Port OC-48/STM16-c POS/RPR SPA (POS mode only)

Serial/Channelized

• Cisco 8-port Channelized T1/E1 SPA

• Cisco 2-port Channelized T3 to DS0 SPA

• Cisco 4-port Channelized T3 to DS0 SPA

• Cisco 2-port T3/E3 Serial SPA

• Cisco 4-port T3/E3 Serial SPA

• Cisco 1-port Channelized STM1/OC3 to DS0 SPA

CEoP/Channelized ATM SPA

• Cisco 24-port T1/E1 Circuit Emulation over Packet SPA (CEoP)

• Cisco 1-port OC-3/STM-1 Circuit Emulation over Packet SPA

• Cisco 2 port channelized T3 Circuit Emulation and channelized ATM SPA 1

Environmental conditions • Operating temperature: 32 to 104 ° F (0 to 40 ° C)

• Storage temperature: -40 to 167 ° F (-40 to 75 ° C)

• Relative humidity: 10 to 90 percent, noncondensing

• Operating altitude: -60 to 2000m

MIBs • Cisco Enti ty MIB (CISCO-ENTITY-MIB)

• Cisco Entity Asset MIB

• Cisco Entity Field-Replaceable Unit (FRU) Control MIB

• Cisco Entity Alarm MIB

• Interface IF MIB (RFC 2233)

• Frame Relay MIB (RFC 1315)

• Cisco Frame Relay MIB

• ATM MIB (RFC 1695)

• Definitions of Managed Objects for Bridges (RFC 1493)

• Evolution of Interfaces Group of MIB-II (RFC 1573)

• SNMP MIB II (RFC 1213)

• Remote Monitoring (RMON) MIB (RFC +1757)

• Switch Monitoring (SMON) MIB

Network management Supported with CiscoWorks CiscoView

CiscoWorks Resource Manager Essentials (RME)

Cisco IP Solution Center (ISC)

Physical specifications • Occupies one slot in a Cisco 7600 Series router

• Supports up to 12 Cisco 7600 SIP-400s in a 13-slot chassis

• Requires Supervisor Engine 720-3B or 720-3BXL

• Dimensions (H x W x D): 1.75 x 15.375 x 16 in.

• Weight: 16 lbs no t including the packaging

Power 185W power consumption per Cisco 7600 SIP-400

265W maximum power consumption with 4 SPAs

Indicators Cisco 7600 SIP-400 status: green (operational); orange (faulty)
Regulatory compliance

Safety

CE marking

• UL 60950

• CSA C22.2 No. 60950

• EN60950

• TS001

• IEC 60950

• AS/NZS3260

• UL60950

EMC

• FCC Part 15 Class A

• ICES-003 Class A

• VCCI Class A

• EN55022 Class A

• CISPR22 Class A

• AS/NZS3548 Class A

• EN61000-3-2

• EN61000-3-3

• EN61000-3-1

• EN55024

• EN50082-1

• EN300 386

Standards Telecommunications

• ITU-T G.610

• ITU-T G.703

• ITU-T G.707

• ITU-T G.783 Sections 9-10

• ITU-T G .784

• ITU-T G.803

• ITU-T G.813

• ITU-T G.825

• ITU-T G.826

• ITU-T G.841

• ITU-T G.957 Table 3

• ITU-T G .958

• ITU-T I.361

• ITU-T I.363

• ITU I.432

• ITU-T Q.2110

• ITU-T Q.2130

• ITU-T Q.2140

• ITU-T Q.2931

• ITU-T O.151

• ITU-T O.171

• ETSI ETS 300 417-1-1

• ACA TS 026 (1997)

• BABT/TC/139 (Draft 1e)
