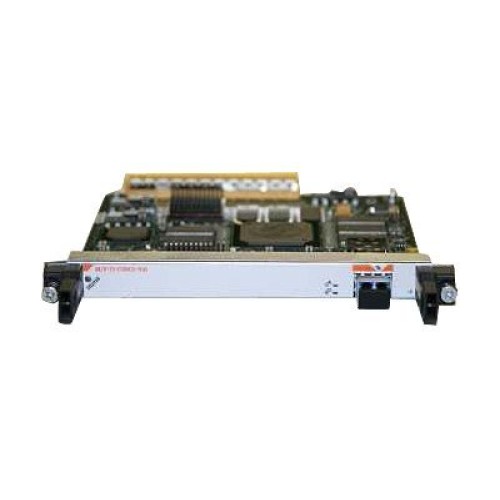

Cisco SPA-1CHOC3-CE-ATM

Features

Descriptions

Product compatibility

Cisco 7600 Series Routers

Cisco ASR 1000 Series Router

Cisco ASR 9000 Series Router (CE only)

Port density per SPA

1-port ChOC3/STM-1

Physical interface (ChOC3)

OC-3c/STM-1 SFP optics module (refer to optical parameters in Table 2)

Visual status indicators (LEDs):

• SPA status LED

• Per-port LEDs

• Carrier and alarm

• Active and loopback

• RFC 4553

• draft-ietf-pwe3-cesopsn-07.txt

ATM

• IETF RFC 2684 (updated RFC тисячу чотиреста вісімдесят три) support for multiple protocol encapsulations over ATM

• IETF RFC 2364 and 2516 for Point-to-Point Protocol (PP P) over ATM

• IETF RFC 1577 support for classical IP and Address Resolution Protocol (ARP) over ATM

• ATM Forum User-Network Interface (UNI) 3.0, 3.1, and 4.0

• MPLS encapsulation for CESoPSN and SAToP PWE transport

• 320 ms jitter buffer

• T3/E3, T1/E1 and nxDS0 CEoP PWEs

• Maximum of 84 T1s, 63 E1s or 575 nxDS0 groups

• Jitter and wander compliant to G.823/G.824 traffic interface

• Synchronous, differential or adaptive clock recovery modes

• Targets 15ppb or better adaptive clock recovery accuracy

• BITS support

• Configurable clock source

ATM

• CBR

• VBR-nrt

• VBR-rt

• UBR and UBR +

• Maximum virtual circuits: 2000 (subject to overall configuration limitations)

• ATM and IP CoS

• Per-virtual circuit and per-virtual path traffic shaping

• Per-virtual circuit and per-virtual path statistics

• PWE3 support

• ATM permanent virtual circuits (PVCs) and switched virtual circuits (SVCs)

• F4 and F5 OAM cell support

• Interim Local Management Interface (ILMI) 1.0

• Layer 2 transport and Layer 3 termination on the same port

• ATM over MPLS

• IMA

• Local (internal) or loop timed (recovered from network)

• Pointer activity monitoring

Local (diagnostic) and line (network) loopback

Payload mapping

• POS with 1 + X ^ 43 self-synchronous scrambler

SONET/SDH compliance

• Telcordia (Bellcore) GR-253-CORE (as applicable)

• ANSI T1 .105, T1.231

• ITU-T G.707, G.957, G.825 (as applicable)

Supported SONET/SDH alarm and signal events

• Signal failure bit error rate (SF-ber)

• Signal degrade bit error rate (SD-ber)

• Signal label payload construction (C2)

• Path trace byte (J1)

• Section

• Loss of signal (LoS)

• Loss of frame (LoF)

• Error counts for B1

• Threshold crossing alarms (TCA) for B1

• Line

• Line alarm indication signal (LAIS)

• Line remote defect indication (LRDI)

• Line remote error indication (LREI)

• Error counts for B2

• TCA for B2

• Path

• Path alarm indication signal (PAIS)

• Path remote defect indication (PRDI)

• Path remote error indication (PREI)

• Error counts for B3

• TCA for B3

• Loss of pointer (LoP)

• Positive stuffing event (PSE)

Negative stuffing event (NSE)

Path unequipped indication signal (PUNEQ)

Path payload mismatch indication signal (PPLM)

Simple Network Management Protocol (SNMP)

Field-replaceable SFP optical modules

1 + 1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols

Single SPA software reset

Height: 0.8 in. (2.03 cm) (single height)

Width: 6.75 in. (17.15 cm)

Depth: 7.28 in. (18.49 cm)

Storage temperature: -38 to 150 ° F (-40 to 70 ° C)

Operating humidity: 5 to 85% relative humidity

Storage humidity: 5 to 95% relative humidity

G. 703

G.704

G.823

G.824

CS-03 (Canada)

T1.403

• UL/CSA 60950 -1

• IEC/EN 60950-1

• AS/NZS 60950.1

• EN60825/IEC60825 laser safety

• 21CFR1040 -FDA Code of Federal Regulations (USA) laser safety

EMC

• FCC Part 15 (CFR 47)

• ICES 003

• CISPR 22

• AS/NZS CISPR22

• VCCI

• EN55022

• EN55024

• EN300 386

• EN50082-1

• EN61000-6-1

Network Equipment Building System (NEBS)

This product is designed to meet the following requirements (official qualification may be in progress):

• SR-3580-NEBS: Criteria levels (Level 3 compliant)

• GR-63-CORE-NEBS: Physical Protection

• GR-1089-CORE -NEBS: EMC and Safety
