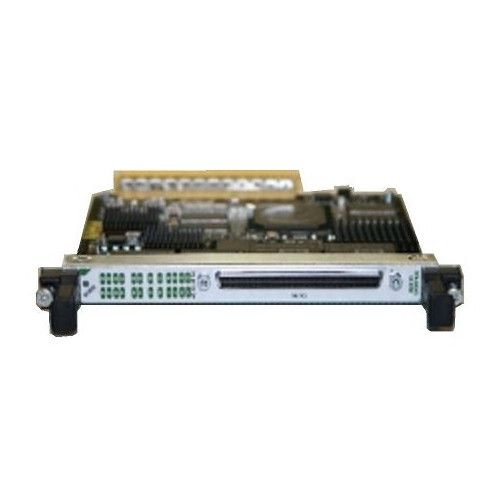

Cisco SPA-24CHT1-CE-ATM

Cisco 7600 Series Routers

Cisco XR 12000 Series Routers

Visual status indicators (LEDs):

• SPA status LED

• Per-port LEDs

• Carrier and alarm

• Active and loopback

• IETF RFC 4553 (SAToP PWE)

• IETF draft-ietf-pwe3-cesopsn-07 (CESoPSN PWE)

ATM

• IETF RFC 2684 (updated RFC 1483) support for multiple protocol encapsulations over ATM

• IETF RFC 2364 and 2516 for Point-to-Point Protocol (PPP) over ATM

• IETF RFC 1577 support for classical IP and Address Resolution Protocol ( ARP) over ATM

• ATM Forum User-Network Interface (UNI) 3.0, 3.1, and 4.0

• MPLS encapsulation for CESoPSN and SAToP PWE transport

• 320 ms jitter buffer

• T1/E1 and nxDS0 CEoP PWEs

• Maximum of 24 T1/E1 or J1 ports or 191 nxDS0 groups

• Jitter and wander compliant to G.823/G.824 traffic interface

• synchronous, differential or adaptive clock recovery modes

• Targets 15ppb or better adaptive clock recovery accuracy

• BITS support

• Configurable clock source

ATM

• CBR

• VBR-nrt

• VBR-rt

• UBR and UBR +

• Maximum virtual circuits: 2,000 (subject to overall configuration limitations)

• ATM and IP CoS

• Per-virtual circuit and per-virtual path traffic shaping

• Per- virt ual circuit and per-virtual path statistics

• PWE3 support

• ATM permanent virtual circuits (PVCs) and switched virtual circuits (SVCs)

• F4 and F5 OAM cell support

• Interim Local Management Interface (ILMI) 1.0

• Layer 2 transport and Layer 3 termination on the same port

• ATM over MPLS

• IMA

• Impedance: 100 ohms

• D4 Super Frame (SF) or Extended Super Frame (ESF) framing

• Alternate mark inversion (AMI) or binary 8-zero substitution (B8ZS) line encoding

• ANSI T1.403 and AT & amp; T TR 54016 Facility Data Link (FDL)

• Selectable T1 CSU line build-out (LBO): 0, -7.5, - 15, and -22.5 dB

• Selectable T1 CSU receiver gain: 26 or 36 dB

• Alarm monitoring:

• Alarm indication sig nal (AIS)

• Out of frame (OOF)

• Far-end alarm failure (yellow or distant alarm )

• Performance data collection:

• CRC and bit errors

• Framing bit errors

• Line errored seconds

• Far-end errored seconds

• Far-end severely errored seconds

• Far-end unavailable seconds

• Line coding violation (LCV)

• TIA-968-A (US requirement, formerly known as FCC Part 68)

• G.703

• G.704

• G.824

• CS-03 (Canada)

• T1 .403

• GR-499

• Impedance: 120 ohms ( adapter cable offers 75-ohm configuration option)

• Unframed E1, CRC4, or non-CRC4 framing

• High -density bipolar with three zeroes (HDB3) line encoding

• Alarm monitoring:

• AIS

• OOF

• Remote alarm indication (RAI)

• Performance data collection :

• CRC and bit errors

• Framing bit errors

• Far-end block error (FEBE)

• LCV

• G.703

• G.704

• G.706

• G.823

• TBR 4, 12, and 13 (Europe)

• ACA S0 16 (Australia)

Single SPA software reset

Height: 0.8 in. (2.03 cm) (single height)

Width: 6.75 in. (17.15 cm)

Depth: 7.28 in. (18.49 cm)

Storage temperature: -38 to 150 ° F (-40 to 70 ° C)

Operating humidity: 5 to 85% relative humidity

Storage humidity: 5 to 95% relative humidity

• UL/CSA 60950-1

• IEC/EN 60950-1

• AS/NZS 60950.1

EMC

• FCC Part 15 (CFR 47)

• ICES 003

• CISPR 22

• AS/NZS CISPR22

• VCCI

• EN55022

• EN55024

• EN300 386

• EN50082-1

• EN61000-6-1

Network Equipment Building System (NEBS)

This product is designed to meet the following requirements (official qualification may be in progress):

• SR-3580-NEBS: Criteria levels (Level 3 compliant)

• GR-63-CORE-NEBS: Physical Protection

• GR-+1089-CORE-NEBS: EMC and Safety
