Cisco R210-BUN-1

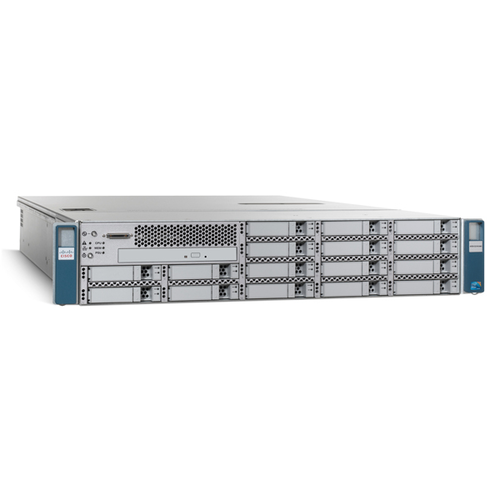

Сервер Cisco R210-BUN-1 (UCS C210 M2)

• Процесори: Два процесора сімейства Intel Xeon 5600
• Пам'ять: 12 DIMM слотів - до 96GB RAM
• LAN/Ethernet : 2 вбудованих порту 10/100/1000Base-T + 1 порт Out-of-band mgmt Ehternet
• HDD: Можливість установки до 16-ти SAS/SATA hot-plug дисків 2,5
• RAID: Вбудований адаптер RAID 0, 1, додаткові адаптери RAID 0,1,5,6,10,50,60
• адаптери: До 5-ти адаптерів PCIe (2 full + 3 half)
• блоки живлення: продублювати блоки живлення
• Доступи: Віддалений і локальний доступ до клавіатури, відео, миші, USB
• Приводи: DVD-ROM
• Роз'єм: Роз'єм USB всередині корпусу

• Type: Server
• Width: 43.7 cm
• Depth: 72.1 cm
• Height: 8.8 cm
• Product Form Factor: Rack- mountable - 2U
• Front Accessible Bays Qty: 1
• Hot-Swap Bays Qty: 16

Expansion/Connectivity

• Interfaces: 1 x serial - RS-232 - 9 pin D-Sub (DB-9)
  4 x Hi-Speed USB - 4 PIN USB Type A (2 front, 2 rear)
  1 x management - Ethernet 10Base-T/100Base-TX - RJ-45
  1 x display/video - VGA - 15 pin HD D-Sub (HD-15 )
  2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
  1 x serial - console - 9 pin D-Sub (DB-9)
• Expansion Bays: 16 (total)/16 (free) x hot-swap - 2.5 "
  1 (total)/1 (free) x front accessible
• Expansion Slot (s): 2 (total )/0 (free) x processor - LGA1366 Socket
  12 (total)/10 (free) x memory
  3 PCI Express 2.0 x8 - half-length, full-height
  2 PCI Express 2.0 x8 - full-length, full-height

Processor

• Type: Int el Xeon X5650/2.66 GHz
• Installed Qty: 2
• Max Supported Qty: 2
• 64-bit Computing: Yes
• Multi -Core Technology: 6-core

RAM

• Technology: DDR3 SDRAM - ECC Chipkill
• Features: Registered
• Installed Size: 8 GB/96 GB (max)
• Configuration Features: 2 x 4 GB

Storage

• Hard Drive: None.

Networking

• Networking: Network adapter
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: HTTP, IPMI 2.0
• Ethernet Ports: 2 x Gigabit Ethernet

Miscellaneous

• Compliant Standards: CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, SABS, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, CB, AS/NZS 60950-1, CCC, ICES-003 Class A, IRAM, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, B SMI CNS 14336, CSA C22.2 No. 60950-1
• Included Accessories: SAS expander

Power

• Voltage Required: AC 120/230 V (50/60 Hz)
• Device Type: Power supply
• Installed Qty: 1
• Max Supported Qty: 2
• Power Provided: 650 Watt
• Power Redundancy: Optional
• Power Redundancy Scheme: 1 + 1 (with optional power supply)

Environmental Parameters

• Min Operating Temperature: 10 ° C
• Max Operating Temperature: 35 ° C
• Humidity Range Operating: 5 - 93%

Storage Controller

• Type: 1 x RAID - plug-in card - PCI Express 2.0
• Controller Interface Type: Serial ATA-600/SAS
• Buffer Size: 512 MB
• Channel Qty: 8
• RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
• Storage Controller Name: LSI MegaRAID SAS 9261-8i

Cache Memory

• Type: L3 Cache
• Installed Size: 24 MB
• Cache Per Processor: 12 MB

Monitor

• Monitor Type: None.

Graphics Controller

• Type: Integrated
• Graphics Processor/Vendor: Matrox MGA G200
