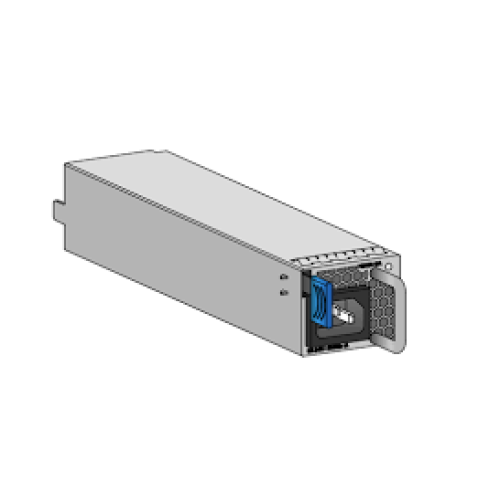

Блок живлення змінного струму H3C PSR250-12A1

Item

Specifications

AC input

Rated input voltage

100 to 240 VAC @ 50 or 60 Hz

Rated input current

4 A

Max. input voltage

90 to 290 VAC @ 47 to 63 Hz

Max. input current

5 A

High-voltage DC input

Rated input voltage

240 VDC

Rated input current

2 A

Max. input voltage

180 to 320 VDC

Max. input current

2.5 A

Output voltage

12 V/3.3 V

Output current

20.9 A (12 V)/2 A(3.3 V)

Max. output power

250 W

Dimensions (H × W × D)

40.2 × 50.5 × 221 mm (1.58 × 1.99 ×
8.70 in)

Operating temperature

–10°C to +55°C (14°F to 131°F)

Relative humidity

5% to 95%
