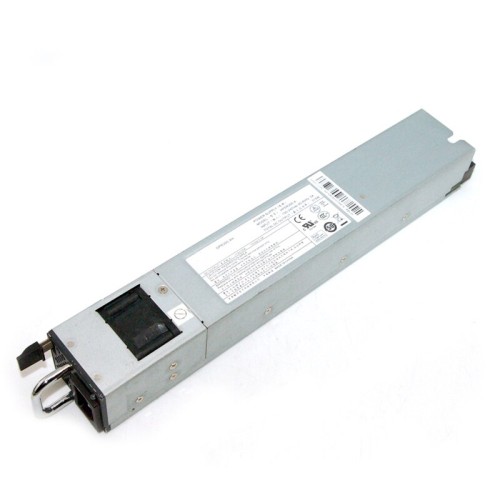

Блок живлення змінного струму LSVM1AC300

Item

Specifications

Rated input voltage

•    LSVM1AC300: 100 VAC to 240 VAC @ 50 Hz or 60 Hz

•    LSVM1DC300: –48 VDC to –60 VDC

Maximum input current

•    LSVM1AC300: 5 A

•    LSVM1DC300: 10 A

Output voltage

12 V/5 V

Output current

25 A (12 V)/3 A (5 V)

Maximum

output power

315 W

Dimensions (H × W × D)

40.2 × 50.5 × 300 mm (1.58 × 1.99 × 11.81 in)

Operating temperature

0°C to 45°C (32°F to 113°F)

Relative humidity

5% to 95%
