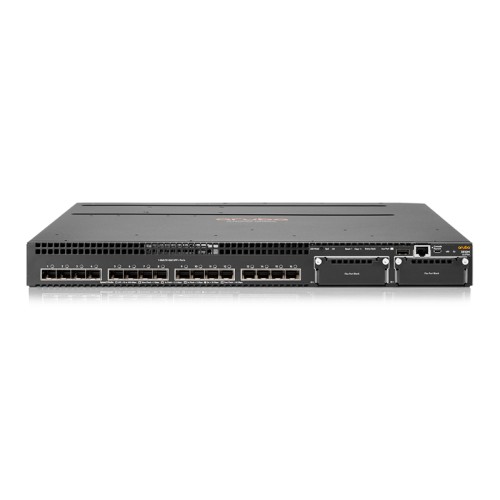

Комутатор HP Aruba 3810M 16SFP + 2-slot (JL075A)
- Модель: JL075A
- Наявність: В наявності
-
Уточнюйте
Серія Aruba 3810 - це потужні, високопродуктивні комутатори рівня L3 з можливістю стекирования. Низькі затримки, висока відмовостійкість і програмовані функції для ефективної роботи кампусних мереж з широкою підтримкою мобільного доступу. Технологія HPE Smart Rate забезпечує високошвидкісне мультігігабітное підключення і живлення PoE +. Модульні порти з пропускною спроможністю 10GbE і 40GbE для агрегування бездротових каналів. Підтримка ПО Aruba ClearPass Policy Manager, Aruba AirWave і Aruba Central. Підтримка інтерфейсів REST API і OpenFlow. Розширений набір функцій рівнів Layer 2 і 3 з підтримкою OSPF, IPv6, IPv4 BGP. Живлення забезпечується за рахунок двох блоків з можливістю гарячої заміни, завдяки чому модулі можна міняти без відключення системи. Комутатори серії Aruba 3810 являють собою краще в галузі рішення для доступу до мобільних кампусні мереж для компаній малого і середнього бізнесу і мереж філій.
Особливості моделі Aruba 3810M 16SFP + 2-slot Switch (JL075A):
- 16 SFP + портів
- 2 модульних слота з підтримкою 8 SFP + портів або 2 SFP 40Gb порт
- 1 консольний порт RJ-45/micro USB
- Коммутационная потужність 480Gbps
- Пропускна здатність 285,7Mpps & nbsp ;
- MAC адрес 64k
Таблиця докладних характеристик коммутатров серії Aruba 3810:
| Модель | (JL071A) | ( JL072A) | (JL073A) | |
| Порти | RJ-45 GE | 24 | 48 | 24 |
| Modul slot | 1 | 1 | 1 | |
| Support modul slot | 4 SFP + Ports or 1 40GbE ports, or 4 Smart Rate ports | 4 SFP + ports or 2 40GbE ports, or 4 Smart Rate ports | 4 SFP + ports or 1 40GbE ports, or 4 Smart Rate ports | |
| Stacking slot | 1 | 1 | 1 | |
| Console port | 1 RJ-45 | 1 RJ-45 | 1 RJ-45 | |
| Out-of-band management port | 1 RJ-45 | 1 RJ-45 | 1 RJ-45 | |
| Dual-personality | 1 (RJ-45 or USB micro-B) | 1 (RJ-45 or USB micro-B) | 1 (RJ-45 or USB micro-B) | |
| Продуктивність | Пам'ять | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card |
| Процесор | Dual ARM® Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal | Dual ARM® Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal | Dual ARM® Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal | |
| 1000 Mb Latency | & lt; 2.8 μs | & lt; 2.8 μs | & lt; 2.8 μs | |
| 10 Gbps Latency | & lt; 1.8 μs | & lt; 1.8 μs | & lt; 1.8 μs | |
| 40 Gbps Latency | & lt; 1.5 μs | & lt; 1.5 μs | & lt; 1.5 μs | |
| Throughput | 95.2 Mpps | 190,5 Mpps | 95.2 Mpps | |
| Routing/Switching capacity | 160 Gbps | 320 Gbps | 160 Gbps | |
| Switch fabric speed | 169 Gbps | 338 Gbps | 169 Gbps | |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) | 10000 entries (IPv4), 5000 entries (IPv6) | 10000 entries (IPv4), 5000 entries (IPv6) | |
| MAC address table size | 64000 entries | 64000 entries | 64000 entries | |
| Фізичні дані | Dimensions | 17.42 (w) x 16.98 ( d) x 1.73 (h) in (44.25 x 43.13 x 4.39 cm) (1U height) | 17.42 (w) x 16.98 (d) x 1.73 (h) in (44.25 x 43.13 x 4.39 cm) (1U height) | 17.42 (w) x 16.98 (d) x 1.73 (h) in (44.25 x 43.13 x 4.39 cm) (1U height) |
| Weight | 12.76 lb (5.79 kg) | 13.20 lb (5.99 kg) | 13.02 lb (5.91 kg) | |
| Mounting and enclosure | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only | |
| Живлення | Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Voltage | JL085A PSU: 100-127/200-240 VAC | JL085A PSU: 100-127/200-240 VAC | JL085A PSU : 100-127/200-240 VAC, JL087A PSU: 110-127/200-240 VAC | |
| Current | JL085A PSU (Each): 1A/0.5A | JL085A PSU (Each): 1A/0.5A | JL085A PSU (Each): 1A/0.5A | |
| Max/Idle Power Rating (Switch + 1 PSU) | 70W/55W | 95W/78W | 95W/82W | |
| Second PSU Power Adder | 10W | 10W | 10W | |
| Maximum Heat Dissipation * (Max Case) | 310.31 | 395.56 | 395.56 | |
| PoE Power (Max Possible) | N/A | N/A | 840W | |
| Довкілля | Operating t emperature | 32 ° F to 113 ° F (0 ° C to 45 ° C) | 32 ° F to 113 ° F (0 ° C to 45 ° C) | 32 ° F to 113 ° F (0 ° C to 45 ° C) |
| Operating relative humidity | 15% to 95% @ 104 ° F (40 ° C) | 15% to 95% @ 104 ° F (40 ° C) | 15% to 95% @ 104 ° F (40 ° C) | |
| Nonoperating/Storage temperature | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149 ° F (65 ° C) | 15% to 90% @ 149 ° F ( 65 ° C) | 15% to 90% @ 149 ° F (65 ° C) | |
| Altitude | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | |
| Acoustic | Power: 39 dB, Pressure: 22.8 dB | Power: 39 dB, Pressure: 22.8 dB | Power: 39 dB, Pressure: 22.8 dB | |
| Primary Airflow Direction | Front to Side and Front to Rear | Front to Side and Front to Rear | Front to Side and Front to Rear | |
| Модель | (JL074A) | (JL075A) | (JL076A) | |
| Порти | RJ-45 GE | 48 | No | 40 |
| SFP + 10G | No | 16 | No | |
| HPE Smart | No | No | 8 | |
| Modul slot | 1 | 2 | 1 | |
| Support modul slot | 4 SFP + ports or 2 40GbE ports, or 4 Smart Rate ports | 8 SFP + ports or 2 40GbE ports, or 4 Smart Rate ports | 4 SFP + ports or 2 40GbE ports, or 4 Smart Rate ports | |
| Stacking slot | 1 | 1 | 1 | |
| Console port | 1 RJ-45 | 1 RJ-45 | 1 RJ-45 | |
| Out-of-band management port | 1 RJ-45 | 1 RJ-45 | 1 R J-45 | |
| Dual-personality | 1 (RJ-45 or USB micro-B) | 1 (RJ-45 or USB micro-B) | 1 (RJ-45 or USB micro-B) | |
| Продуктивність | Пам'ять | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card |
| Процесор | Dual ARM ® Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal | Dual ARM® Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal | Dual ARM® Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal | |
| 1000 Mb Latency | & lt; 2.8 μs | & lt; 2.8 μs | & lt; 2.8 μs | |
| 10 Gbps Latency | & lt; 1.8 μs | & lt; 1.8 μs | & lt; 1.8 μs | |
| 40 Gbps Latency | & lt; 1.5 μs | & lt; 1.5 μs | & lt; 1.5 μs | |
| Throughput | 190,5 Mpps | 285.7 Mpps | 273.8 Mpps | |
| Routing/Switching capacity | 320 Gbps | 480 Gbps | 480 Gbps | |
| Switch fabric speed | 338 Gbps | 508 Gbps | 508 Gbps | |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) | 10000 entries (IPv4), 5000 entries (IPv6) | 10000 entries (IPv4), 5000 entries (IPv6) | |
| MAC address table size | 64000 entries | 64000 entries | 64000 entries | |
| Фізичні дані | Dimensions | 17.42 (w) x 16.98 ( d) x 1.73 (h) in (44.25 x 43.13 x 4.39 cm) (1U height) | 17.42 (w) x 16.98 (d) x 1.73 (h) in (44.25 x 43.13 x 4.39 cm) (1U height) | 17.42 (w) x 16.98 (d) x 1.73 (h) in (44.25 x 43.13 x 4.39 cm) (1U height) |
| Weigh t | 13.62 lb (6.18 kg) | 13.28 lb (6.02 kg) | 13.61 lb (6.17 kg) | |
| Mounting and enclosure | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only | |
| Живлення | Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Voltage | JL085A PSU: 100-127/200-240 VAC, JL087A PSU: 110-127/200-240 VAC | JL085A PSU: 100-127/200 -240 VAC | JL085A PSU: 100-127/200-240 VAC, JL087A PSU: 110-127/200-240 VAC | |
| Current | JL085A PSU (Each): 1A/0.5A | JL085A PSU (Each): 1A/0.5A | JL085A PSU (Each): 1A/0.5A | |
| Max/Idle Power Rating (Switch + 1 PSU) | 135W/103W | 120W/95W | 190W/158W | |
| Second PSU Power Adder | 10W | 10W | 10W | |
| Maximum Heat Dissipation * (Max Case) | 531.96 | 480.81 | 719.51 | |
| PoE Power (Max Possible) | 1440W | N/A | 1440W | |
| Довкілля | Operating temperature | 32 ° F to 113 ° F (0 ° C to 45 ° C) | 32 ° F to 113 ° F (0 ° C to 45 ° C) | 32 ° F to 113 ° F (0 ° C to 45 ° C) |
| Operating relative humidity | 15% to 95% @ 104 ° F (40 ° C) | 15% to 95% @ 104 ° F (40 ° C) | 15% to 95% @ 104 ° F (40 ° C) | |
| Nonoperating/Storage temperature | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149 ° F ( 65 ° C) | 15% to 90% @ 149 ° F (65 ° C) | 15% to 90% @ 149 ° F (65 ° C) | |
| Altitude | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | |
| Acoustic | Power: 39 dB, Pressure: 22.8 dB | Power: 39 dB, Pressure : 22.8 dB | Power: 39 dB, Pressure: 22.8 dB | |
| Primary Airflow Direction | Front to Side and Front to Rear | Front to Side and Front to Rear | Front to Side and Front to Rear | |
| Модель | (JL 428A) | (JL 429A) | (JL 430A) | |
| Порти | RJ-45 GE | 48 | 48 | No |
| SFP + 10G | No | No | 24 | |
| PoE + | 48 | 48 | No | |
| Modul slot | 1 | 1 | 1 | |
| Support modul slot | 4 SFP + ports or 2 40GbE ports, or 4 Smart Rate ports | 4 SFP + ports or 2 40GbE ports, or 4 Smart Rate ports | 24 SFP + ports or 2 40GbE ports, or 4 Smart Rate ports | |
| Stacking slot | 1 | 1 | 1 | |
| Console port | 1 RJ-45 | 1 RJ-45 | 1 RJ-45 | |
| Out-of-band management port | 1 RJ-45 | 1 RJ-45 | 1 RJ-45 | |
| Dual-personality | 1 (RJ-45 or USB micro-B) | 1 (RJ-45 or USB micro-B) | 1 (RJ-45 or USB micro-B) | |
| Продуктивність | Пам'ять | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card | P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card |
| Процесор | Dual ARM® Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal | Dual ARM® Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal | Dual ARM® Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal | |
| 1000 Mb Latency | & lt; 2.8 μs | & lt; 2.8 μs | & lt; 2.8 μs | |
| 10 Gbps Latency | & lt; 1.8 μs | & lt; 1.8 μs | & lt; 1.8 μs | |
| 40 Gbps Latency | & lt; 1.5 μs | & lt; 1.5 μs | & lt; 1.5 μs | |
| Throughput | 190,5 Mpps | 190,5 Mpps | 285,7 Mpps | |
| Routing/Switching capacity | 320 Gbps | 320 Gbps | 480 Gbps | |
| Switch fabric speed | 338 Gbps | 338 Gbps | 508 Gbps | |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) | 10000 entries (IPv4) , 5000 entries (IPv6) | 10000 entries (IPv4), 5000 entries (IPv6) | |
| MAC address table size | 64000 entries | 64000 entries | 64000 entries | |
| Фізичні дані | Dimensions | 17.42 (w ) x 16.98 (d) x 1.73 (h) in (44.25 x 43.13 x 4.39 cm) (1U height) | 17.42 (w) x 16.98 (d) x 1.73 (h) in (44.25 x 43.13 x 4.39 cm) (1U height) | 17.42 (w) x 16.98 ( d) x 1.73 (h) in (44.25 x 43.13 x 4.39 cm) (1U height) |
| Weigh t | 15.82 lb (7.18 kg) | 15.94 lb (7.23 kg) | 15.56 lb (7.06 kg) | |
| Mounting and enclosure | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only | Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only | |
| Живлення | Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Voltage | JL085A PSU: 100-127/200-240 VAC, JL087A PSU: 110-127/200-240 VAC | JL085A PSU: 100-127/200 -240 VAC, JL087A PSU: 110-127/200-240 VAC | JL085A PSU: 100-127/200-240 VAC | |
| Current | JL085A PSU (Each): 1A/0.5A | JL085A PSU (Each): 1A/0.5A | JL085A PSU (Each): 1A/0.5A | |
| Max/Idle Power Rating (Switch + 1 PSU) | 146W/107W | 146W/107W | 142W/103W | |
| Second PSU Power Adder | 10W | 10W | 10W | |
| Maximum Heat Dissipation * (Max Case) | 531.96 | 531.96 | 480,81 | |
| PoE Power (Max Possible) | 1440W | 1440W | N/A | |
| Навколишнє ср їжа | Operating temperature | 32 ° F to 113 ° F (0 ° C to 45 ° C) | 32 ° F to 113 ° F (0 ° C to 45 ° C) | 32 ° F to 113 ° F (0 ° C to 45 ° C) |
| Operating relative humidity | 15% to 95% @ 104 ° F (40 ° C) | 15% to 95% @ 104 ° F (40 ° C) | 15 % to 95% @ 104 ° F (40 ° C) | |
| Nonoperating/Storage temperature | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | -40 ° F to 158 ° F (-40 ° C to 70 ° C) | |
| Nonoperating/Storage relative humidity | 15% to 90% @ 149 ° F (65 ° C) | 15% to 90% @ 149 ° F (65 ° C) | 15% to 90% @ 149 ° F (65 ° C) | |
| Altitude | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | |
| Acoustic | Power: 39 dB, Pressure: 22.8 dB | Power: 39 dB, Pressure: 22.8 dB | Power: 39 dB, Pressure: 22.8 dB | |
| Primary Airflow Direction | Front to Side and Front to Rear | Front to Side and Front t o Rear | Front to Side and Front to Rear |
