Linksys WIP310-G2

  • Модель: WIP310-G2
  • Наявність: В наявності

  • ₴10710


The Cisco ® WIP310 Wireless-G IP Phone забезпечує:
  • Високоякісні виклики по протоколу VoIP по мережі WiFi за допомогою бездротового телефону
  • Підтримка протоколу 802.11b/g і останніх версій протоколів VoIP SIP
  • налаштування захисту бездротової мережі і підтримка множинних SSID
  • Легкість настройки


    Product Overview

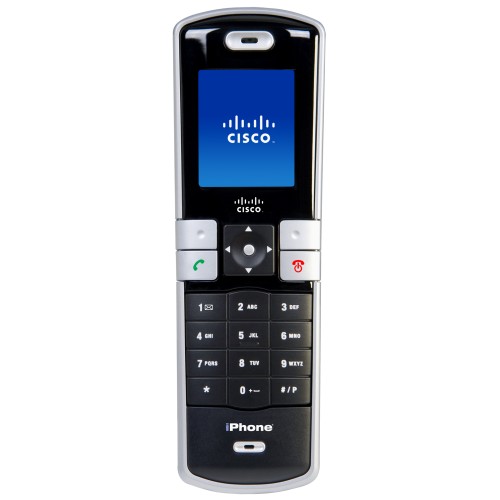

    The Cisco ® WIP310 Wireless-G IP Phone (Figure 1) enables high-quality voice over IP (VoIP) service through a Wireless-G network.

    The Cisco WIP310 operates in the 2.4-GHz band and supports 802.11b/g and the latest VoIP Session Initiation Protocol (SIP). The large, full-color high-resolution display features an intuitive user interface that enables users to easily and quickly configure the handset with network access using Wi-Fi Protected Setup (WPS).

    WPS is a fast, highly secure way of connecting the Cisco WIP310 IP phone with any standards-based Wireless-G broadband router. Just press the WPS button and your connection will automatically be configured and secured with a custom service set identifier (SSID) using powerful Wi-Fi Protected Access (WPA) encryption. Within seconds you have successfully set up a highly secure connection.

    The Cisco WIP310 uses the same trusted and proven provisioning capabilities presently being used to deploy other popular Cisco voice products for small and medium-sized businesses on a massive scale. Customers purchasing VoIP service from a service provider and using the Cisco WIP310 can be quickly provisioned over a Wi-Fi connection, receiving their configuration profile securely right to the handset via a Trivial File Transfer Protocol (TFTP), HTTP, or HTTPS download.

    The included telephone base accentuates the modern design of the handset and provides hands-free convenience when using the built-in speakerphone. The Cisco WIP310 supports many features such as caller ID, call forwarding, call transfer, and three-way conferencing and can store 200 records in its phone book.

    Benefit with low-cost VoIP service and access to any Wireless-G network using the WIP310 Wireless-G IP Phone from Cisco.

    Features

    • Supports SIP v2 standards

    • Complies with the IEEE 802.11b/g wireless standard

    • Supports WPS

    • Supports Wi-Fi Multimedia (WMM) quality of service (QoS) (802.11e)

    • Short Message Service (SMS) support

    • Averages about 3 hours talk time, 40 hours standby time (home) **

    • Easy configuration via web interface or provisioning server

    • Backlit keypad and display

    • Multiprofile Wi-Fi support

    • Visual voicemail indicator

    • Network Address Translation (NAT) pass-through/serial tunnel (STUN) support

    • USB charger interface

    • Polyphonic ring tone

    • User-downloadable ring tones

    • Speakerphone

    Specifications

    Table 1 contains the specifications, package contents, and minimum requirements for the Cisco WIP310 Wireless-G IP Phone.

    Table 1. Specifications for the Cisco WIP310 Wireless-G IP Phone

    Specifications
    Band 2.4 GHz
    Transmit power 13 dBm for 802.11g, 15 dBm for 802.11b
    Radio range Outdoor: up to 100-300m; indoor: up to 25-100m
    Antenna Planar inverted-F antenna (PIFA)
    External interface 1 USB port (1.1 and 2.0), 2.5m standard 4-segment earphone jack
    Display 1.8 -inch thin-film transistor (TFT) liquid crystal display (LCD) (128 x 160 pixels), 65,000 colors, backlit
    Memory 32 MB NAND flash plus 32 MB synchronous dynamic RAM (SDRAM)
    Network protocols TCP/User Datagram Protocol (UDP)/IP, IPV4, Dynamic Host Configuration Protocol (DHCP) client
    Wi-Fi features

    • 802.11b, 802.11g

    • WMM (802.11e)

    Wireless security

    • 64 and 128-bit Wired Equivalent Privacy (WEP) encryption

    • WPA personal

    • WPA2 personal

    • WPS

    Voice protocols

    • SIP v2 Session Initiation Protocol (RFC3261)

    • SIP reliable 1xx response (RFC3262)

    • SIP SRV lookup (RFC3263)

    • SIP offer/answer model (RFC3264)

    • SIP subscribe/notify framework (RFC3265)

    • STUN (RFC3489)

    • SIP message waiting indication (RFC3842)

    • SIP refer (RFC3515)

    • SIP info (RFC2976)

    • SIP message method for text messaging (RFC3428)

    • Session Description Protocol (SDP) (RFC2327 )

    • DNS SRV (RFC2782)

    • Real-Time Transport Protocol (RTP) (RFC1889)

    • HTTP authentication (RFC2617)

    Voice codecs G.711u, G.711a, G.726 (at 32 kbps only), G.729ab
    Dual-tone multifrequency (DTMF) transmission DTMF events over RTP (RFC2833)
    Voice quality

    • Acoustic echo cancellation (AEC)

    • Automatic gain control

    • Adaptive jitter buffer

    • Packet/frame lost concealment

    • Adjustable audio frames per packet

    Call control *

    • Caller ID

    • Call mute

    • Call hold/resume

    • Call forward (conditional, unconditional, busy, or no answer)

    • Call transfer (attended or blind)

    • Call waiting

    • Call blocking

    • Do not disturb

    • Shared call appearance (SCA)

    • 3-way conferencing with local mixing

    • Auto-answering

    • Media loop back (MLB)

    • Call parking and unparking

    • IP dialing

    • Secure calls

    • Integrates with the Cisco SPA9000 Voice System

    * Some features may require support by the call server

    Phone features

    • Speakerphone button

    • Local phone book

    • Dial from call history

    • SMS

    • Web services (weather/stock quotes/local search)

    • User-downloadable ring tones

    • Key lock

    • Wi -Fi access point site survey

    • Voice/data statistics

    • Speed dial

    • Clock

    • Phone book (200 records)

    • Call history (20 records)

    Management features

    • Embedded web configuration interface ( with password protection)

    • Auto provisioning via TFTP/HTTP/HTTPS

    • Configuration changes via Modem Management Interface (MMI ) or web interface

    • Remote firmware upgrade via TFTP/HTTP/HTTPS

    • Secure, remote provisioning capabilities for mass scale

    • Service provider activation

    Documentation

    • Quick installation guide

    • User guide

    • Administration guide

    • Provisioning guide (service providers only)

    Environmental
    Dimensions

    W x H x D

    		1.71 x 5.85 x 1.00 in.

    (43.5 x 148.7 x 25.3 mm)

    Weight 3.88 oz (110 g)
    Charger Mini USB AC adapter AC100 ~ 240V input, 5V/1.0A DC output
    Power Lithium ion (Li-ion) 3.7V 860-mAH battery, AC adapter

    ** Batteries are rechargeable and have a limited number of charge cycles.

    The batteries may eventually need to be replaced. Battery life will vary from the stated average by usage, configuration, and environment.

    Certification FCC, CE, Wi-Fi
    Operating temperature 32 ° to 104 ° F (0 ° to 40 ° C)
    Storage temperature -4 ° to 149 ° F (-20 ° to 65 ° C)
    Operating humidity 10% to 80% noncondensing
    Storage humidity 10% to 95% noncondensing
    Package Contents

    • Handset

    • Phone cradle

    • Power adapter

    • Li-ion battery

    • USB cable

    • Quick install guide

    Minimum Requirements

    • Internet connection (cable/DSL/other)

    • Access to Wi-Fi network

    • Activated VoIP service

    Product Warranty
    1-year limited hardware warranty with return to factory replacement and 90-day limited software warranty.
